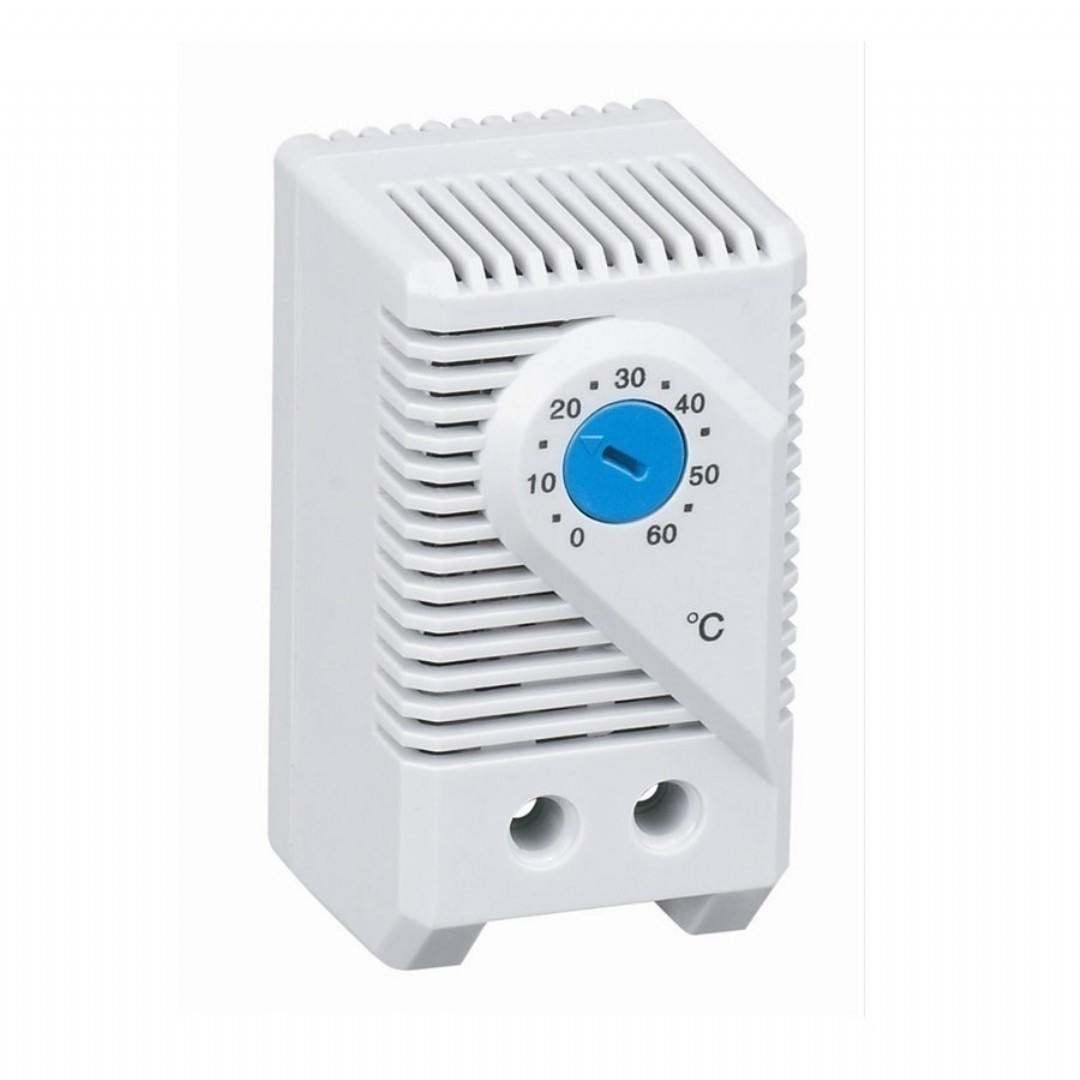

Demeks Mekanik Termostat Fan Kontrol

Demeks Mekanik Termostat Fan Kontrol - Fanların sıcaklık deÄŸerine baÄŸlı olarak çalışmasını saÄŸlar. Elektrik panolarında enerji verimliliÄŸi ve sistem güvenliÄŸi için uygundur.

Siwitch temperature Differince : 7K (±4K tolerance )

Sensor element :  Thermostatic bimetal

Contact Type :  Snap - action contact

Contact resistance : < 10mΩ

Services life :  > 100,000 cycles

Max. Switching capacity :  250VAC, 10(2) A - 120VAC 15(2) A - DC 30W

EMC : acc to EN 55014-1-2, EN 61000-3-2, EN 61000 -3-3

Connection :  2   2.5mm2  2-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm2 standed wire ( with wire end ferrule ) 1.5 mm2

Mounting : 35mm DIN clıp for 35 mm DIN rail,EN60715 or for exit  filter EF 118 Series

Casing :  Plastic according to UL 94 V-0,light grey

Dimensions : 60 x 33 x 43 mm

Weight : approx. 40 g

Fitting position : variable

Operatingg Storage  Temperature : -20 to +80°C(-4 to + 176°F)

Protection type : IP20
